| Highlights | 1/3" 1.3 mega pixel CMOS sensor
4 mm lens
Dual-core 32 bits digital signal processing
Supports dual-stream image output
Day and night application makes 30M IR view
Supports Web configuraion, real time recording, transmission and playback and download
Offers open SDK
ONVIF compliant |
| Main Features | |

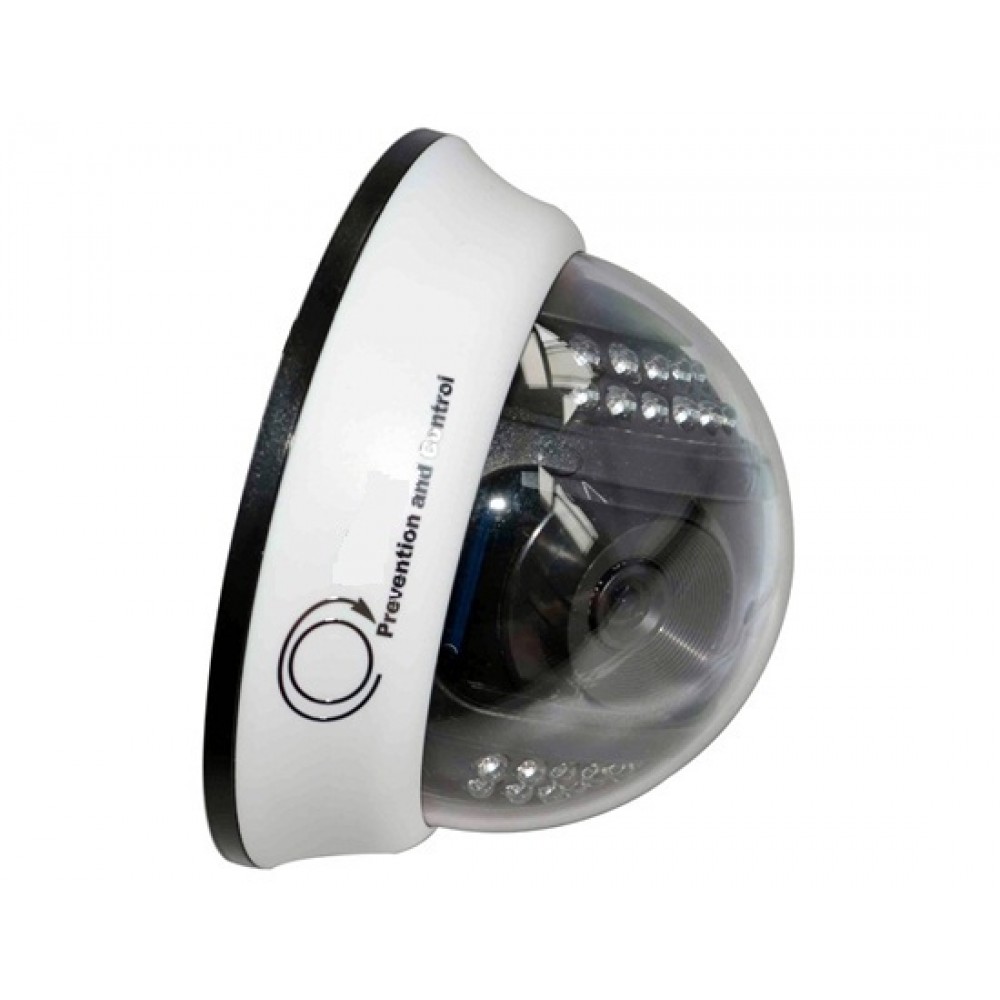

| Brand & Model | IPc-532/T13 |
| Image Sensor | 1/3" 1.3 mega pixel CMOS sensor |
| System Structure | Embedded LINUX RTOS, dual core 32 bits DSP (TI Davinci DM365); Pure hardware compression, watchdog |
| RAM/Technology | DDR2 |
| RAM Memory | 128M |
| Hard Drive Type | NAND Fast Flash |
| Hard Drive Capacity | 32M |
| Lens | 4 mm lens |
| Photo Resistance Linkage | Supports linkage between photo resistance input sign, image, IR-Cut and IR lamp |
| Photo Resistance Interface | 1 |
| Day & Night Switch | IR cut filter with auto switch |
| IR Sensor | 22pc ┻5 LED |
| Video Compression | H.264 compression, dual stream (0.1M-6Mpbs adjustable) |
| Frame Rate | 1.3 mega pixels @ 25fps |
| Image Output | Main stream: 1280x960, 1024x768, 1280x720
Sub-stream: 960x540, 640x360, 480x272, 352x288, 320x240, 352x192, 320x192, 288x192, 256x192 |
| Network Interface | RJ45, 10/100M adaptation |
| Network Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP |
| Network Function | WEB Configuraion and OSD supported, real time recording, transmission and playback, download |
| Operating Temperature | Ranges -20-50 degrees Celsius (-4-122 degrees Fahrenheit) |
| Operating Humidity | 0-85% RH |
| Power Supply | DC 12v 1.0A |
| Power Consumption | Up to 3w |
| Degree of Protection | IP66 |
| Remark | 5 Mega Pixels=2592≠1920; 3 Mega Pixels =2048≠1536; 2 Mega Pixels =1920≠1080 or 1600≠1200; 1.3 Mega Pixels =1280≠960; 1 Mega Pixels =1280≠720 |
| Others | Supports free UC2 client software, VM6000 platform, SDK for customer software development |
