| Features |
Large monitoring area
Advanced H.264 video compression
Supports P2P function to ensure that camera can work in complex internet environment
Easy to install and operate
Built-in motion detection
Two-way voice intercom
Built-in DDNS system
Supports remote monitoring via mobile device
Support SD card storage
Built-in wifi module for wireless networking
Supports IR-cut dual filter switch between day and night for high quality imaging
Support I/O for connecting external sensor and alarm |
| General Specs |

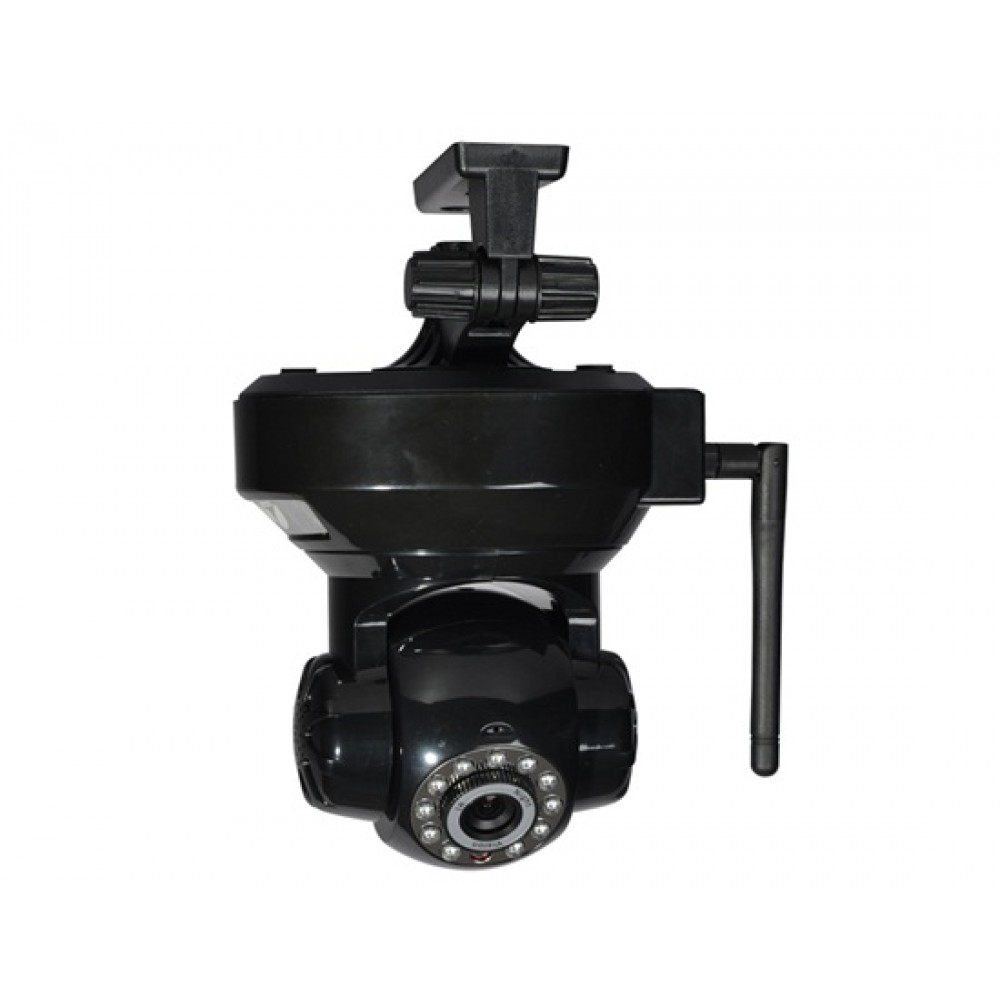

| Model | QQZM IPA01-725NSP |
| Type | IP wireless network camera |
| Pan/Tilt Angle | Horizontal: 355▲, Vertical: 120▲ |
| Certification | ISO, FCC, EC, RoHS |
| Operating Temperature | -10▲-50▲C |
| Operating Humidity | 10%-85% |
| Image Sensor |
| Image Sensor | 1/4" D1 progressive scan CMOS |
| Display Resolution | 640x480(VGA), 320x240(QVGA) |
| Lens |
| Lens | F1.2/3.6mm |
| Minimum Illumination | Daytime:2.5Lux., Night: 0.3Lux. |
| Audio |
| Input | Microphone |
| Output | External interface |
| Video |
| Image Compression | H.264 Baseline Profile |
| Image Frame Rate | 25fps (50Hz), 30fps (60Hz), automatic adjustment downwards |
| Image Resolution | 640 x 480(VGA), 320 x 240(QVGA) |
| Image Adjustment | Brightness, Contrast, Saturation, Color |
| White Balance | Adjustable |
| Universal Functions | Anti-flash, dual-stream, password protection, supports viewing by mobile phone |
| Night Visibility | 10 x LED |
| Video Storage | Hard disk |
| Network |
| Ethernet Port | 1 x 10/100Mbps RJ-45 port |
| Supported Protocols | HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS |
| Wireless Standard | IEEE 802.11b/g/n |
| Alarm |
| Alarm Detection | Support motion detection and linkage detection |
| Alarm Events | Notification via email, FTP, capture, video |
| Power |
| Power Supply | 12V, 1A |
| PC Configuration |
| CPU | 2.0GHZ or above (suggested 3.0GHz) |
| Memory | 256MB or above (suggested 1.0GHz) |
| Graphics Card | 64M or above |
| Supported OS | Microsoft Windows 2000/XP/Vista/7/Mac/Linux |
| Supported Browsers | IE 6.0 or above Firefox or other compatible browsers |
| Product Details (without package and accessories) |
| Dimensions | 202 x 182 x 120 mm |
| Weight | 297 g |
