| Highlights | 1/4" line by line CMOS sensor with D1 effect
VGA(640x480), QVGA(320X240), 25fps/s display resolution
H.264 Baseline video compression
Supports one-way audio input and two-way intercom
Supports one-way alarm input and output
Supports snapshot and motion detection
Built-in 802.11b/g/n wireless network with P2P technology for easy installation and use
Built-in tripod head
Features anti-flicker, dual-stream, password protection and supports video watching on a mobile phone
Supports automatic switching between double IR-cut filters
Supports an external TF card up to 32GB |
| Main Features | |
| Brand & Model | QQZM IPA01-725NSP |
| Image Sensor | 1/4" CMOS |
| Resolution | VGA (640x480), QVGA (320x240) |
| Lens | F1.2/3.6mm |
| Minimum Illumination | Day: 2.5 lux, Night: 0.3 lux |
| View Angle | Horizontal: 350 degrees, Vertical: 120 degrees; built-in tripod head for adjustable rotation speed |
| Certified | ISO, FCC, EC, Rohs, ISO9001, Top ten brands, Member of Shenzhen Security Industry Association |
| Computer Configuration |
| CPU | 2.0 GHz or above |
| Memory | 256 MB or above |
| GPU | 64 MB or above |
| Operating System | Microsoft Windows 2000/XP, Vista, Windows7, Mac OS, Linux |
| Browser | IE6 or above, Firefox browser or other compliant browsers |
| Audio | |
| Input | One-way audio input (G.771a), two-way intercom |
| Function | Monitor and intercom |
| Video | |
| Video Compression | H.264 Baseline Profile compression |
| Frame Rate | 25fps (50Hz), 30fps (60Hz) down adjustable |
| Resolution | 640x480 (VGA), 320x240 (QVGA) |
| Image Adjustment | Brightness, contrast, saturation and chroma |
| White Balance | Adjustable |
| Night Vision | Eleven LED lights |
| Video Storage | Stored by computer hard drives or an external TF card |
| Network | |
| Internet | 10/100Mbps RJ-45 port |
| Supported Protocol | HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS |
| Wireless Network | Wi-Fi (IEEE802.11b, 802.11g, 802.11n) |
| Alarm | |
| Alarm Detection | Motion detection and linkage alarm detection |
| Alarm Inform | Email, FTP, snapshot, video recording and others |
| Interfaces/Ports | |
| Power Supply | DC 12V, 1.0A |
| Power | Up to 5W |

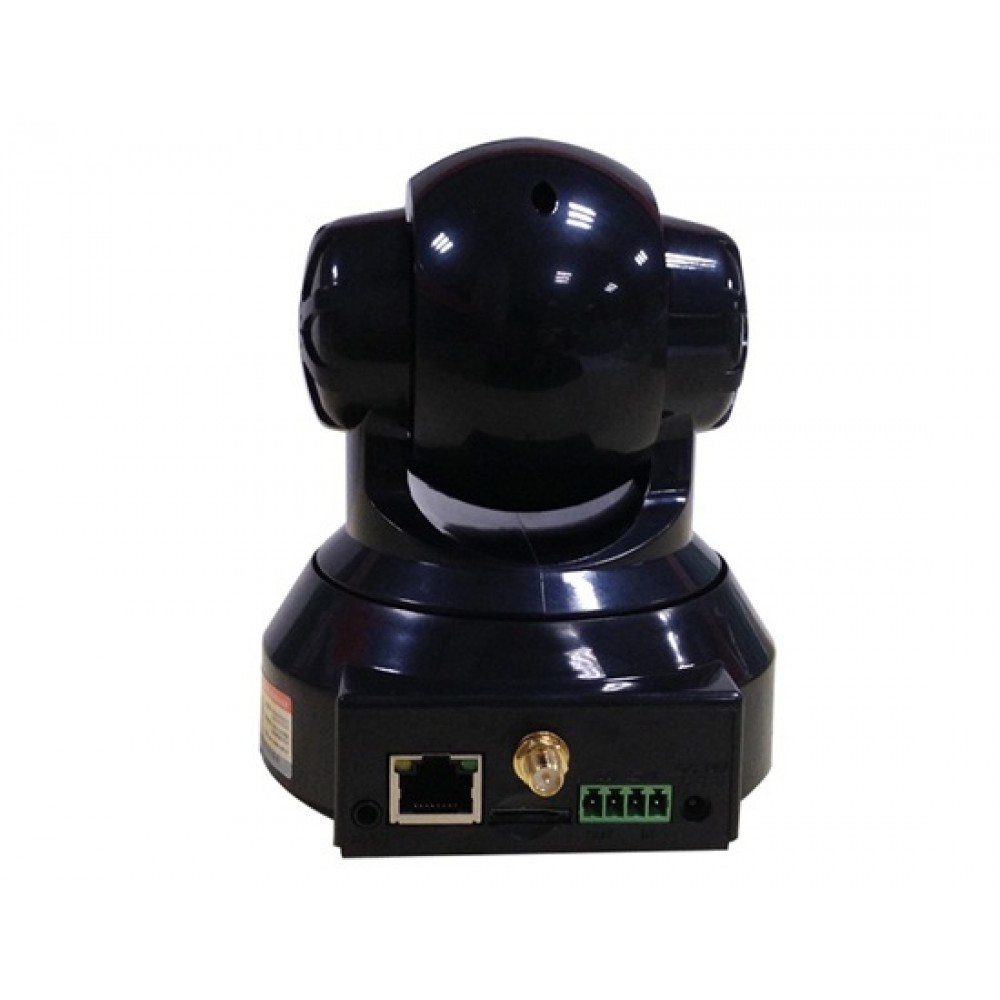

| Ports | RJ45, I/O linkage port, Wi-Fi external antenna port |
| Product Details (without package and accessories) |
| Dimensions | 202 x 182 X 120 mm |
| Weight | 297 g |
